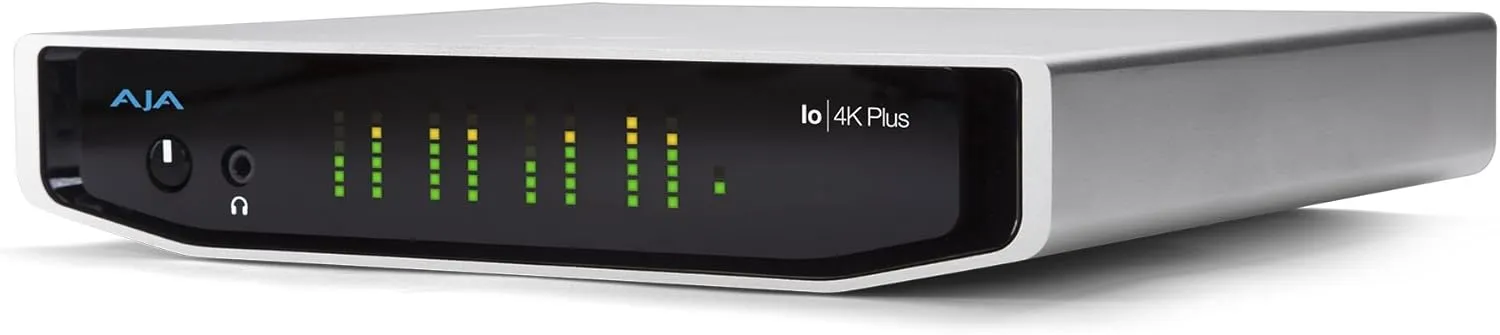

- AJA Io 4K Plus Professional Video I/O with Thunderbolt 3 Performance - AJA 3 Year Warranty
- Video Formats: (4K) 4096 x 2160P 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60(4K) 4096 x 2160PsF 23.98, 24, 25(UltraHD) 3840 x 2160P 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60(UltraHD) 3840 x 2160PsF 23.98, 24, 25(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30(HD) 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60(HD) 1080PsF 23.98, 24, 25, 29.97, 30
- Video Formats (Cont.): (HD) 1080i 50, 59.94, 60(HD) 720p 50, 59.94, 60(SD) 625i 25(SD) 525i 29.97
- Video Inputs: 12G-SDI, SMPTE-2082, 12-bit, 10-bit and 8-bit6G-SDI, SMPTE-2081, 10-bit and 8-bit3G-SDI, SMPTE-259/292/296/424/425, 12-bit, 10-bit and 8-bit 4K/UltraHD 4:4:4 (4 x BNC)1.5G-SDI, SMPTE 372M, Dual Link HD 4:4:4 (2 x BNC), 12-bit, 10-bit and 8-bit1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1 x BNC), 10-bit and 8-bitHDMI v2.0 30/36 bits/pixel, RGB or YUV, 6 Gbps. 4K, UltraHD, 2K, HD and SD with HFR support up to 60p (4:2:2), 10-bit and 8-bit
- Video Outputs: 12G-SDI, SMPTE-2082, 12-bit, 10-bit and 8-bit6G-SDI, SMPTE-2081, 10-bit and 8-bit3G-SDI, SMPTE-259/292/296/424, 12-bit, 10-bit and 8-bit 4K/UltraHD 4:4:4 (4 x BNC)1.5G-SDI, SMPTE 372M, Dual Link HD 4:4:4 (2 x BNC), 12-bit, 10-bit and 8-bit1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1 x BNC), 10-bit and 8-bitHDMI v2.0 30/36 bits/pixel, RGB or YUV, 6 Gbps 4K, UltraHD, 2K, HD and SD with HFR support up to 60p (4:2:2), 10-bit and 8-bit
Io 4K Plus is the cutting edge of capture and output hardware available over Thunderbolt 3, offering a full set of professional video and audio connectivity with support for the latest 4K/UltraHD devices, High Frame Rate (HFR), High Dynamic Range (HDR) and deep color workflows. The power of Thunderbolt 3 enables Io 4K Plus to handle a wide range of formats from SD to HD, UltraHD and full 4K with frame rates up to 60p over both 12G-SDI and HDMI 2.0 with single cable simplicity , plus HDR 10 and HLG support over HDMI for emerging HDR workflows. AJA's Io family of devices brings desktop I/O power to a portable size and shape. Move between desktop and mobile, macOS and Windows with a single device that has all the power and functionality your work requires. Powerful and Flexible Professional I/O The Io family delivers powerful workflows in a compact form, bringing flexible I/O and high performance to any compatible workstation or laptop. The needs of video professionals continue to evolve. The ability to run full featured software on laptops and smaller form factor computers as well as the growing needs of streaming applications, on-set functionality and the move to 4K and HDR workflows, all create a tremendous need for compact video and audio I/O solutions. AJA answers that call with a range of products that provide desktop level functionality in a portable form factor that's powerful enough to deliver in the edit suite and sturdy enough to handle life
